What is an HDD?

Hard Disk Drives (HDDs) have been one of the most fundamental storage devices in computing history. Despite the rise of Solid State Drives (SSDs), HDDs remain widely used due to their affordability and large storage capacities. This article explores the origins, construction, working principles, technical specifications, advantages, and disadvantages of HDDs.

History of HDDs

The first HDD was invented by IBM in 1956. Named the IBM 305 RAMAC (Random Access Method of Accounting and Control), it was a massive machine by today’s standards. It consisted of fifty 24-inch diameter disks and provided a storage capacity of about 5 megabytes (MB). Over the decades, HDDs have dramatically shrunk in size and expanded in capacity, becoming a staple for personal computers, servers, and data centers worldwide.

Construction and Disk Material

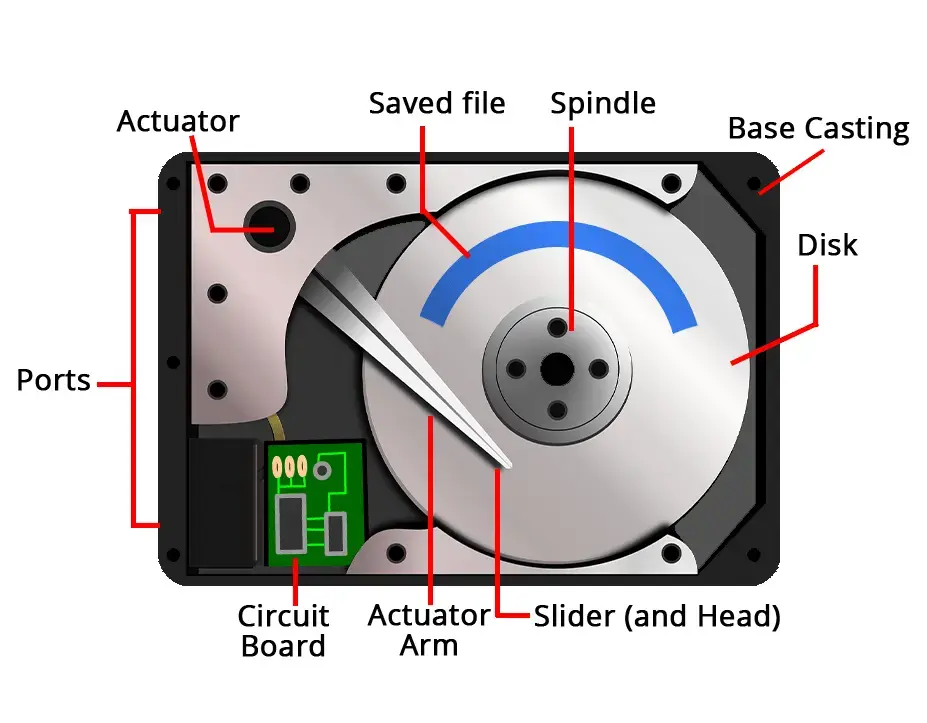

At the heart of an HDD is a stack of circular disks called platters. These platters are usually made of aluminum or glass substrates coated with a thin layer of magnetic material, typically a cobalt-based alloy. This magnetic coating allows data to be stored magnetically on the surface of the platters. The platters spin at high speeds inside a sealed casing to protect them from dust and contamination.

The read/write heads float just above the surface of the platters on a thin cushion of air generated by the spinning disks. These heads move radially across the platters to read or write data.

How HDDs Work

HDDs store digital data magnetically by magnetizing tiny regions of the platter surface in one of two polarities (representing binary 0 or 1). When a user saves a file, the drive’s actuator arm moves the read/write head to the appropriate track on the spinning platter. Data is then written or read sequentially as the platter rotates beneath the head.

The drive’s controller translates the computer’s data into magnetic signals and vice versa. The speed at which the platters spin affects how quickly data can be accessed.

Speed and Rotation Rates

The rotational speed of HDD platters is measured in revolutions per minute (RPM). Common speeds include 5,400 RPM, 7,200 RPM, 10,000 RPM, and up to 15,000 RPM in enterprise drives. Higher RPM means faster access times and better performance but often results in more power consumption and noise.

Typical consumer HDDs spin at 7,200 RPM, balancing speed and energy efficiency. Drives with lower speeds like 5,400 RPM are often found in laptops for better battery life, while enterprise-grade drives use 10,000 or 15,000 RPM for faster data processing.

Physical Size and Dimensions

HDDs come mainly in two standard form factors:

• 3.5-inch drives: Common in desktop computers and servers, these drives are larger and offer higher capacities.
• 2.5-inch drives: Designed for laptops and portable devices, these drives are smaller and consume less power but usually have lower maximum capacities.

The physical thickness of drives varies, especially in 2.5-inch models, ranging from 7mm to 15mm, depending on storage capacity and intended use.

Storage Capacity

When first introduced, HDDs could store only a few megabytes. Modern HDDs can hold several terabytes (TB) of data. Typical consumer drives today range from 500GB to 16TB or more, while enterprise drives can reach capacities upwards of 20TB.

The maximum capacity is limited by factors like the density of magnetic recording on the platters and the number of platters inside the drive.

Advantages of HDDs

1. Cost-Effective Storage: HDDs provide a lower cost per gigabyte compared to SSDs, making them ideal for large-scale storage.
2. Large Capacity: High-capacity HDDs are widely available, suitable for storing extensive multimedia libraries, backups, and archives.
3. Longevity for Archival Use: When not in constant use, HDDs can store data safely for many years.
4. Established Technology: HDD manufacturing and repair are well-developed and widely supported.

Disadvantages of HDDs

1. Slower Performance: Compared to SSDs, HDDs have slower read/write speeds and higher latency.
2. Mechanical Wear: Moving parts make HDDs susceptible to mechanical failures due to shock, wear, or aging.
3. Power Consumption: HDDs generally consume more power and generate more heat than SSDs.
4. Noise and Vibration: The spinning platters and moving heads produce audible noise and vibration, which may be noticeable in quiet environments.

Conclusion

Despite the surge of SSDs in the market, HDDs remain relevant due to their affordability and vast storage capacities. Their technological evolution from the bulky machines of the 1950s to compact multi-terabyte drives demonstrates a remarkable engineering journey. Understanding HDDs’ working principles and specifications helps users make informed decisions about their data storage needs.
